Technical Info

TDS_Numbers_Photo4

FULL FEATURE LIST

1
Reduced catch points.
2

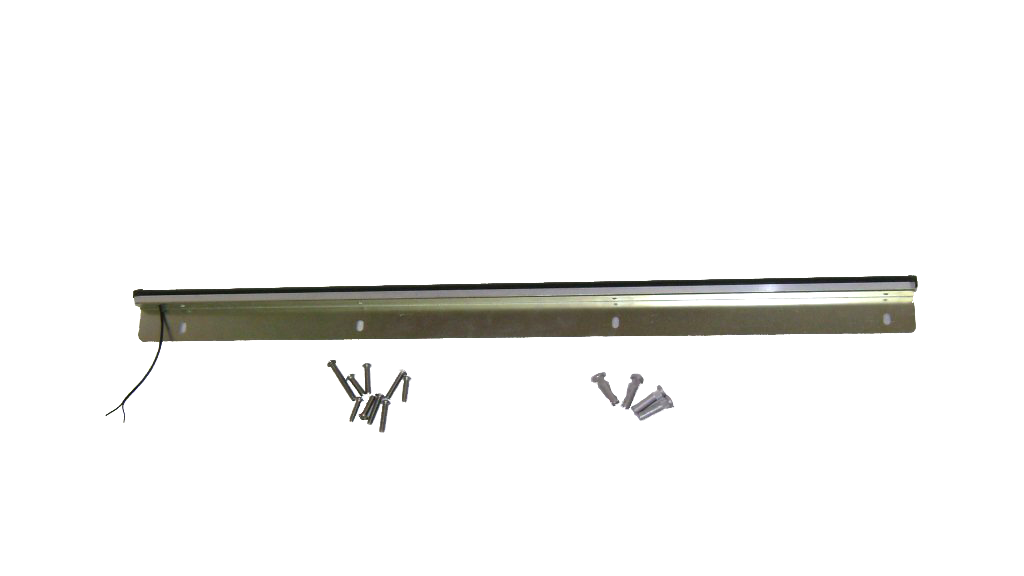

Switch activation at 1lb. nominal.
3
Low profile design.
4
Tamper-resistant screws.
5

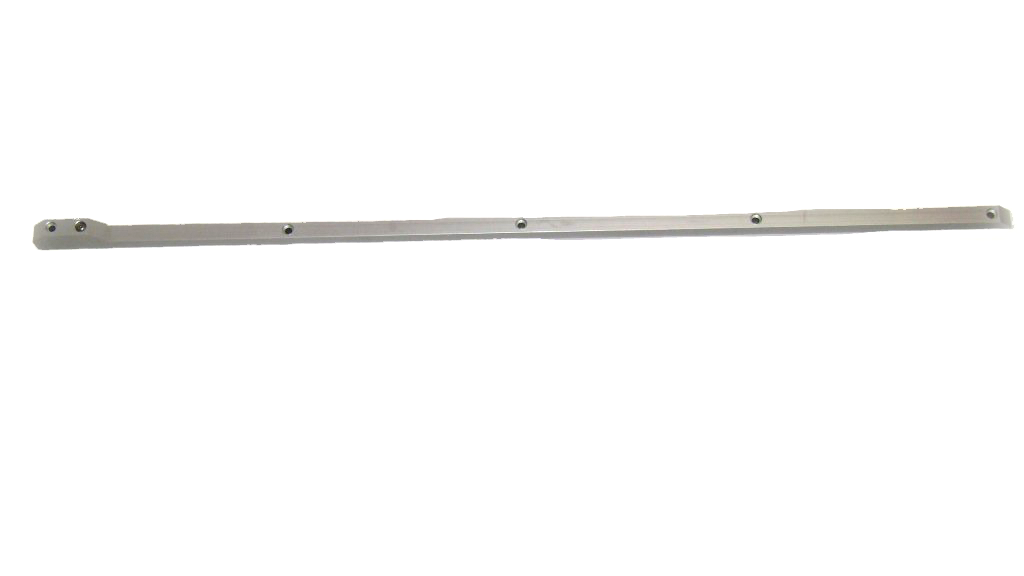

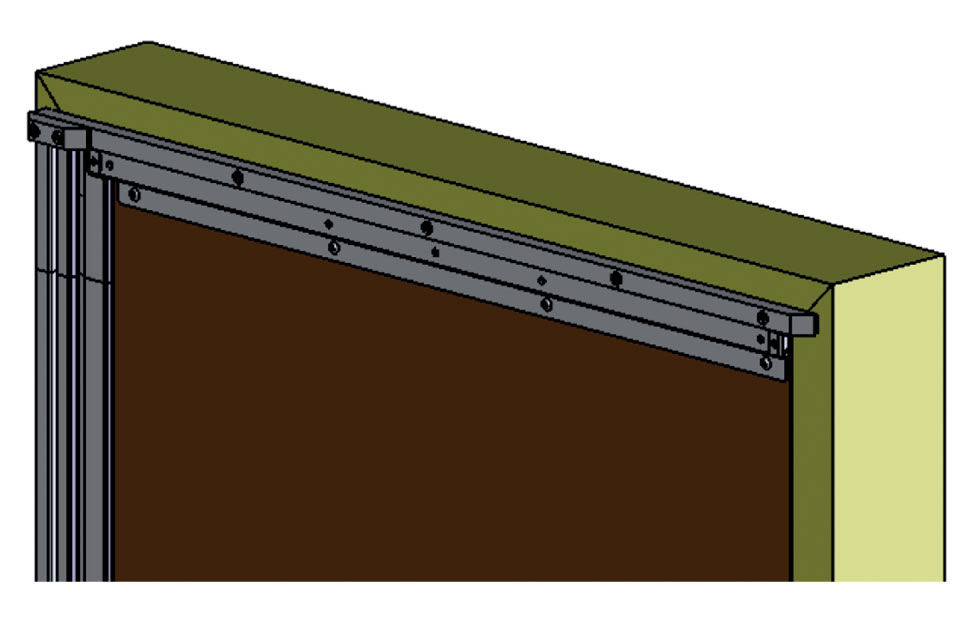

Extruded aluminum header fastened on frame.
6

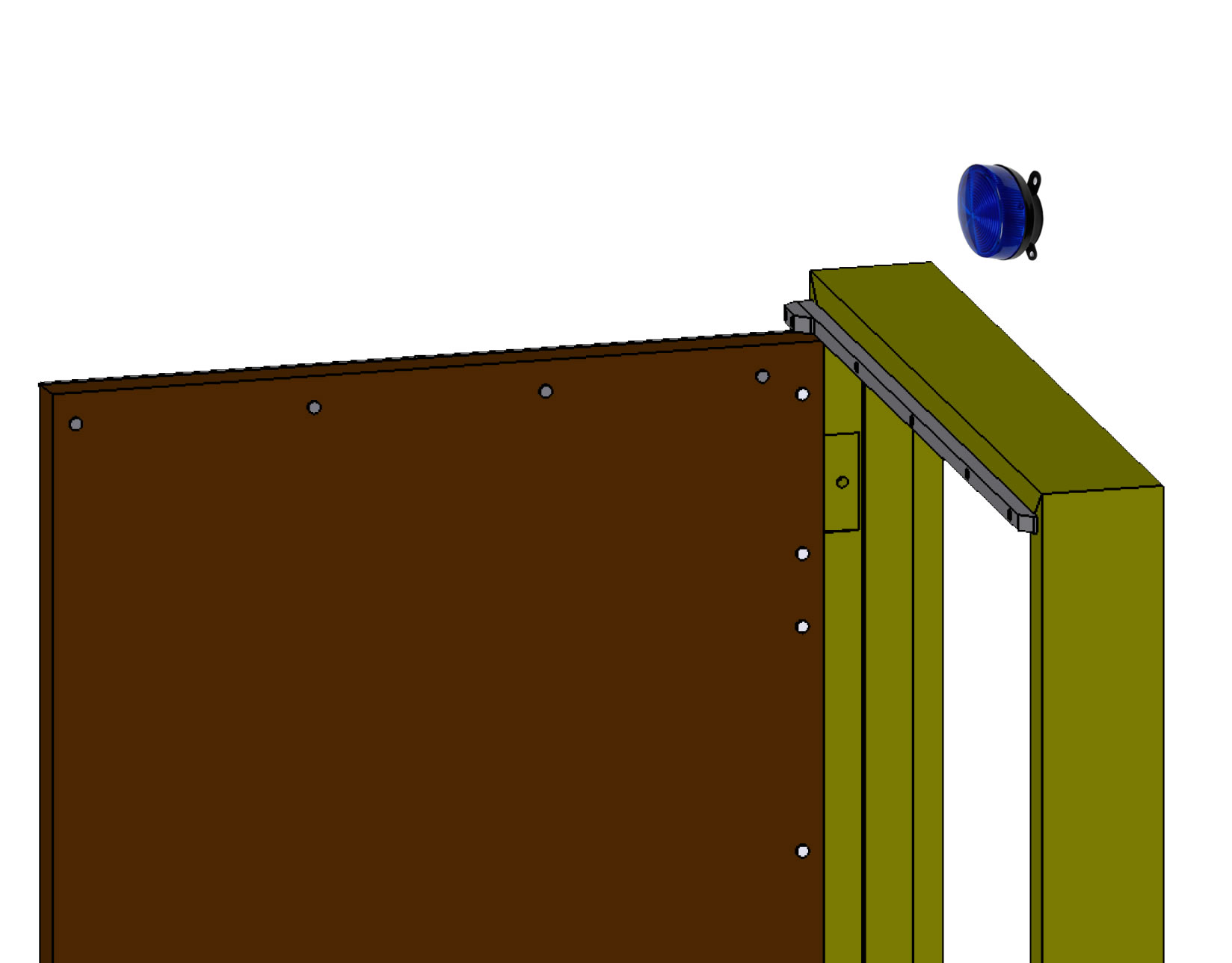

Strobe light placed above room door gives quick visual location.
7

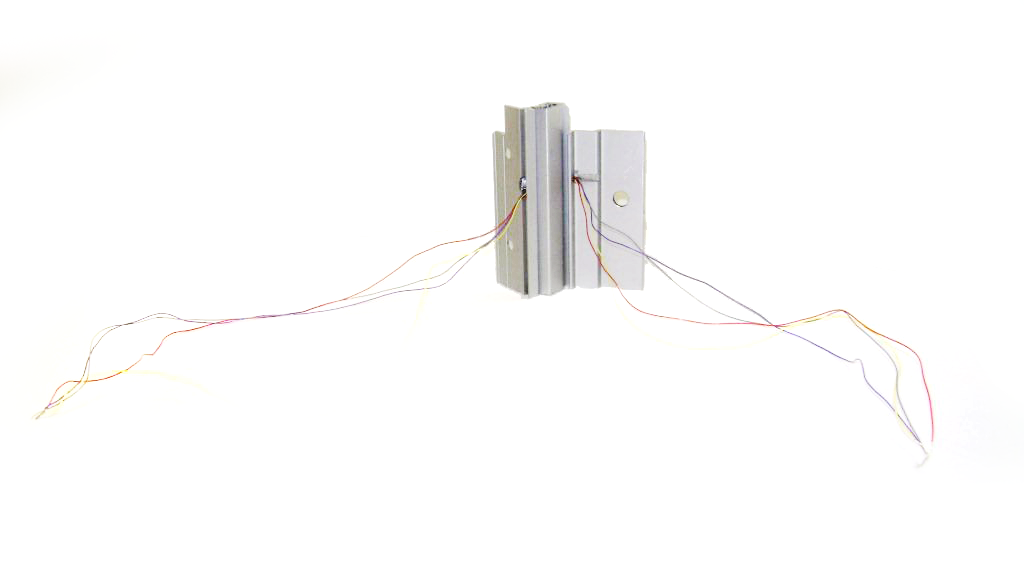

Electrified hinge section factory-made to fit with switch, no cutting in field.
8
Reduced catch points (provides coverage for vulnerable corner area).
9
Removable hinge section for easy servicing.
10
Use of full surface continuous hinge to reduce pinch points.Existing hinge pocket used as wire chase (retrofit with filler plates).
11
Keyswitch (without cylinder) accepts most key systems. Used to deactivate and reset the alarm (remote keypad also available).
ITEM BELOW NOT SHOWN ON PICTURE.
12
Key reset of system at monitored room assures patient safety.

BASIC MONITORING PANEL FEATURES

  • All wiring and alarm input/output devices are supervised to warn of tampering.

  • 48 double door, 96 single door rooms available on a single basic panel. Up to 8 panels can be linked together to monitor a total of 384-768 doors.

  • Keypad console audible indicator and two-line, 32 character LCD display alerts an alarm condition or system trouble at nurses’ station.

  • Main panel provides an event log (history log) that can store up to 512 events (time of event, response time and reset time). Logged events can be viewed on keypad console.

  • Keypad or laptop programmable.

  • Keypad "beep" walk test feature performed without triggering sirens and strobes.

  • Independently controlled notification devices (sirens) can be stationed in wings, floors and/or other designated areas of a facility.

  • All system components are electronically supervised and will notify if maintenance is required. Monitored doors can be isolated from the system during maintenance.
